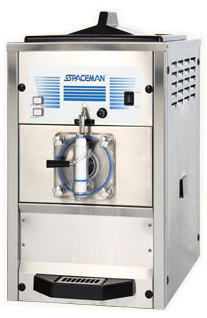

Model 6490
Frozen Beverage Freezer

Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

  • Single Flavor, Countertop, Touch Button Controls, Stainless Steel Panels.


  • Freezing Cylinder
    One, 3.8 Liter (4 quarts)

  • Mix Hopper
    One, 25 Liters (26.4 quarts) Refrigerated to maintain mix below 4.4ºC (40ºF) Approved for dairy and non-dairy products.

  • Indicator Lights
    Add Mix light alerts the operator to add mix. When Mix Out light turns ON, the unit automatically shuts down to prevent damage.

  • Automatic Consistency Control
    Specially designed viscosity control automatically maintains superior product quality. Adjustable control allows the operator to serve a wide variety of frozen beverages at the desired thickness.

  • Output
    80 Cups/Hour (250 ml/cup at 40ºF Liquid & 75ºF Ambient)

  • Safety Protections
    • High pressure switch prevents compressor overheat.
    • Thermal overload protects from motor overheat.


SPECIFICATIONS

  • Weight Pounds: Net 190 - Shipping: 214

  • Dimensions Net:
    Width 16.3 "
    Depth 22.8"
    Height 28.9"

  • Dimensions Shipping:
    Width 18.3"
    Depth 29.5"
    Height 35.4"

  • Electrical
    110/60/1 or 208-230/60/1
    Beater Motor: One @ 1/3HP

  • Refrigeration System
    One Compressor: 5000 BTU/HR, R404A (BTUs may vary depending on compressor used.)

  • Air Cooled
    Minimum clearance of 152mm (6") on both sides is required to achieve optimum performance. The rear of the unit may be placed against a wall.

  • Note
    Continuing research results in steady improvements, therefore, these specifications are subject to change without notice.



    Specifications are subject to change without notice.
