H&M USA Gelato Ice Cream Machine and Equipment, Your Best Choice For Gelato Ice Cream Business

 Combo Machine (Batch Freezer + Pasteurizer )

Batch Freezer
Blast Freezer
Combo Machine
Gelato Pasteurizer
Cream Pasteurizer
Soft Ice Cream Machine
Showcases
Refrigeration Equipment
Other Equipment

Download Datasheet

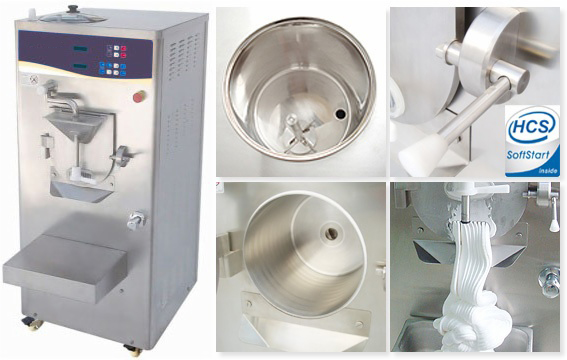

       This is an ideal machine for ice cream making. It is fast, simple, reliable and space-saving. This machine perfectly suits modern ice cream makers who want total hygiene, simplicity of use and efficacy. An entire workshop in one machine only. Production of all types of ice cream. Perfect pasteurizing, fast production, easy operation. Low running cost by saving water and power.

 Features:


Divided in two parts: a hot part for pasteurizing and a cold part for batch freezing.
Two speeds, low for Italian gelato and high for high overrun American ice cream.
Easy control panel, electronically controlled through a few simple buttons.
Automatic performance based on a series of predetermined functions in a rapid and repetitive way .
Unique designed evaporator with gas finely dispersed to “Multipoint” around cylinder.
Patent dasher with high performance, easy to clean and replace.
Hardness-control-system (HCS),precisely control the status of mixer.
Vertical heating tub with outside transfer tube, easy for operating, cleaning and maintenance.
Designed with safety devices to protect the operator and the machine from dangers.
Practical built-in water hose allowing easier and faster cleaning.
Automatic audible alarm signals when a process is done.
R404a refrigerate gas.





    Specifications:

MODEL

Capacity

Pasto Mix used

Freezer Mix used

Batch Time*

Hour* Ability

Power

type

Installed

power

Gross

Wt.

Pasteurize

Freezer

Min.

Max.

Min.

Max.

Pasteurize

Freezer

Liter

Liter

Liter

Liter

Liter

Liter

Min.

Min.

Liter

Volt/Ph/Hz

Kw

Kg

M5C

5

5

1.2

5

1.5

3.5

12

12

20

220/1/50,60

1.5+2.5

225

M10C

10

10

5

10

3.0

7.0

15

15

40

400,220/3/50,60

2.5+5.5

310

M15C

15

15

7.5

15

5.0

10.0

15

15

60

400,220/3/50,60

3.0+7.1

395

M20C

20

20

10

20

6.0

14.0

15

15

80

400,220/3/50,60

4.2+9.2

460

*The Batch time and Hour ability may various for the different mix used and cooling condition. ** Condenser: water-cooled/ or air/cooled.

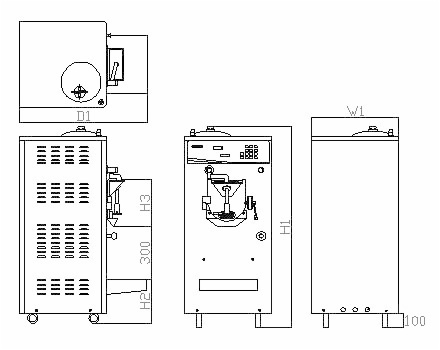

M5C: W1=450, D1=820, H1=790, H2=0;

M10C: W1=485, D1=890, H1=1330, H2=550;

M15C: W1=555, D1=880, H1=1330, H2=550

M20C: W1=555, D1=880, H1=1330, H2=550

Specifications are subject to change without notice.
